KEY FEATURE
- 80 PLUS Silver certified (230V EU)
 - Support Intel ATX 3.0 standard (compatible with ATX 3.1)
 - 120mm Fluid Dynamic Bearing (FDB) Fan
 - Flat cable design
 - Powerful single +12V rail
 - OVP/OPP/SCP/UVP/OCP/OTP protection

-

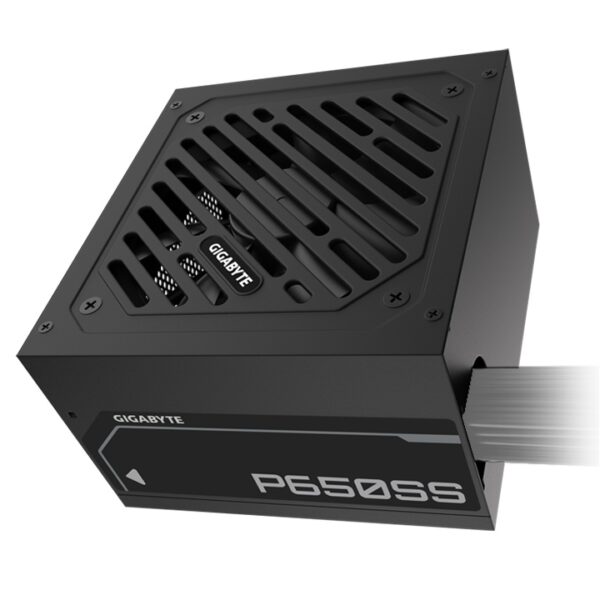

ModelGP-P650SS
 -
TypeIntel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
 -
PFCActive PFC (>0.9 typical)
 -
Input Voltage155-240 Vac
 -
Input Current6.3A
 -
Input Frequency50-60 Hz
 -
Output Capacity650W
 -
Dimension150 x 140 x 86 mm
 -
Fan Type120mm Fluid Dynamic Bearing (FDB) fan
 -
80 PLUSSilver
 -
Efficiency90% at typical load (230V EU)
 -
MTBF>100,000 hours
 -
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
 -
Power Good Signal100-150ms
 -
Hold Up Time>16ms
 -
Cable TypeFlat, All black
 -
ConnectorsATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1
PCI-e 6+2 Pin x 2 : 600mm*2
SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
