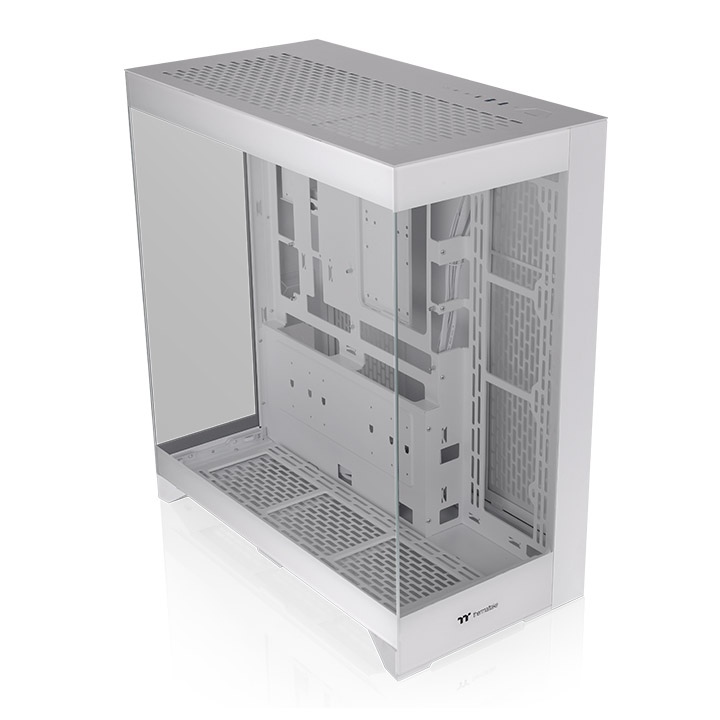

3 cuotas Designed for an exceptional view, The CTE E550 TG is a dual chamber mid-tower chassis with three TG panels that allows users to display components in style. It supports the latest Hidden-Connector motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility
| La serie | CTE |
|---|---|
| TIPO DE CAJA | Mid Tower |
| DIMENSIONES (AL x AN x PR) | 558.5 x 270 x 513mm (21.99 x 10.63 x 20.2 inch) |
| PESO NETO | 14.5 kg / 31.97 lbs. |
| PANEL LATERAL | 4mm Tempered Glass x 3 |
| Material | SPCC |
| SISTEMA DE REFRIGERACIÓN | 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5” |
| RANURAS DE EXPANSIÓN | 7 |
| PLACAS BASE | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
| PUERTOS E/S | USB 3.0 x 2, Type-c x1, HD Audio x 1 |
| FUENTE DE ALIMENTACIÓN | Standard PS2 PSU (optional) |
| COMPATIBILIDAD VENTILADORES | Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm |
| COMPATIBILIDAD RADIADORES | Top: 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bottom (DIY only): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm |
| LIMITACIONES | CPU cooler max height: 166mm VGA max length: 415mm (with radiator) 443.8mm (without radiator) PSU max length: 220mm |
