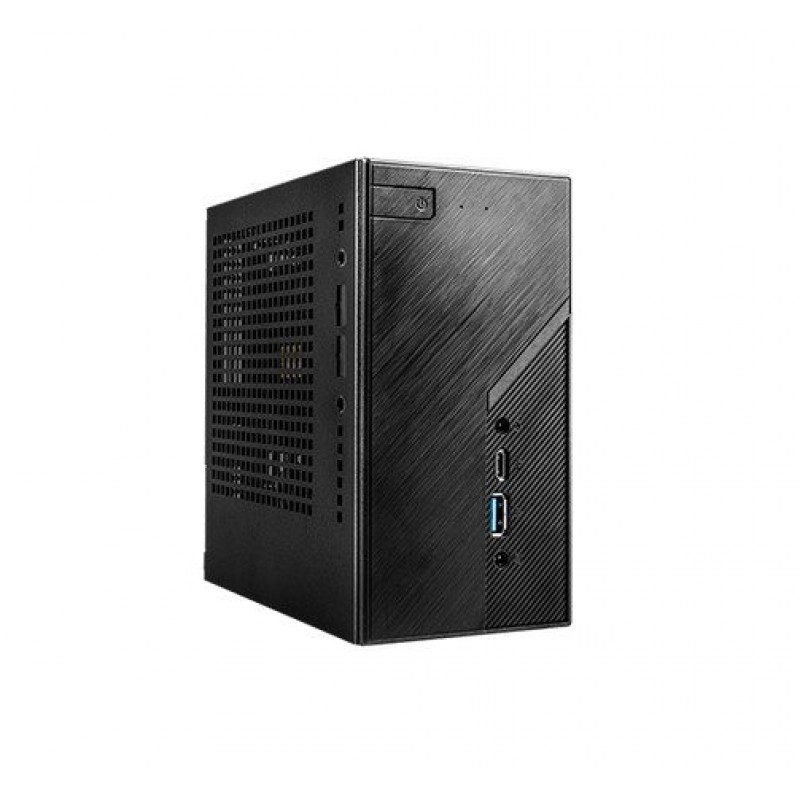

Mini Pc Asrock Deskmini B660W (Barebone)

DeskMini B660

• CPU
  - Supports 14th, 13th & 12th Gen Intel^® Core™ Processors (LGA1700), Max. TDP 65W
• Chipset
  - Intel^® B660
• Cooler
  - Supports Intel^® CPU Cooler (Max. Height ≦ 47mm)
• Memory
  - Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
• Graphics
  - HDMI (4K@60Hz)
  - DisplayPort 1.4
  - DisplayPort 1.4 (over USB Type-C Alt Mode)
  - D-Sub

  *Supports up to 4 displays simultaneously
• Audio
  - Realtek ALC269 Audio Codec
• Storage
  - 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)*
  - 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode**
  - 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode**

  *Supports Intel^® Volume Management Device (VMD)

  **Supports NVMe SSD as boot disks
  M2_2 supports Intel^® Optane™ Technology

• LAN
  - Gigabit LAN (Intel^® I219V)
• WLAN
  - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel^® CNVi (Integrated Wi-Fi/BT)
• Front I/O
  - 1 x MIC-In
  - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
  - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
  - 1 x Head Phone with MIC Jack
• Rear I/O
  - 1 x DC-In Jack (Compatible with the 19V power adapter)
  - 1 x D-Sub Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
  - 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED
• Connectors
  - 1 x USB 2.0 Header
  - 1 x Front Panel Header
  - 2 x 4-Pin fan connectors (CPU, SYS)
  - 1 x Internal Speaker Header (4-Pin)
  - 1 x Audio Header (4-Pin)
• Accessory
  - 2 x SATA Data with Power Cable
  - 1 x 120W/19V adapter
  - 1 x Screws Pack
• Dimension
  - 155 x 155 x 80 mm (1.92L)
• OS
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit
