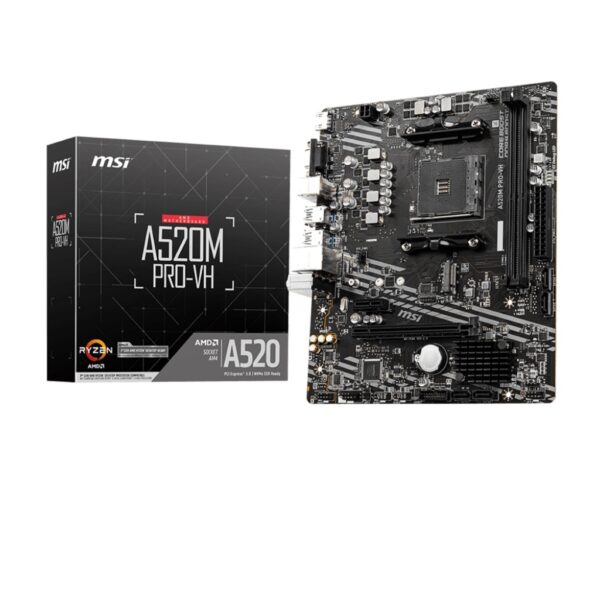

Motherboard AM4 Msi A520M Pro-Vh

Model Name A520M PRO-VH
CPU Support Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD
Ryzen™ 4000 G-Series Desktop Processors
CPU Socket AMD Socket AM4
Chipset AMD A520 Chipset
Graphics
Interface
1x PCI-E 3.0 x1 slot
1x PCI-E 3.0 x16 slot
Display Interface HDMI™, VGA – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR4-4600MHz(OC)
Storage 1x M.2 Gen3 x4 slot
4x SATA 6Gb/s ports
USB ports 6x USB 3.2 Gen 1 5Gbps (Type-A) + 6x USB 2.0
LAN Realtek®
RTL8111H 1Gbps LAN controller
Audio 8-Channel (7.1) HD Audio with Audio Boost
FEATURES
Turbo M.2
Delivering Speeds Up to 32Gb/s
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
EZ Debug LED
Easiest way to troubleshoot.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
