300mbps wireless speed is ideal for hd streaming, online gaming, and large file downloads
three 5dbi antennas greatly increase wireless signal strength, size and stability
intuitive webpage guides you through the setup process in minutes
dimensions (w x d x h)
147 mm × 115 mm × 34 mm
reception sensitivity
• 270m: -70dbm@10% per • 11m: -87dbm@10% per
• 130m: -72dbm@10% per • 6 m: -92dbm@10% per
• 54m: -74dbm@10% per • 1 m: -94dbm@10% per
wireless security
wpa-psk/wpa2-psk
guest network
2.4ghz guest network
external power supply
5vdc/0.6a
antenna type
3 x 5dbi fixed omni directional antennas
signal rate
11n: up to 300mbps (dynamic)
11g: up to 54mbps (dynamic)
11b: up to 11mbps (dynamic)
button
reset/wps button
wireless standards
ieee 802.11n, ieee 802.11g, ieee 802.11b
frequency
2.4 – 2.4835ghz
interfaces
3 10/100mbps lan ports
1 10/100mbps wan port
certifications
ce, rohs
package contents

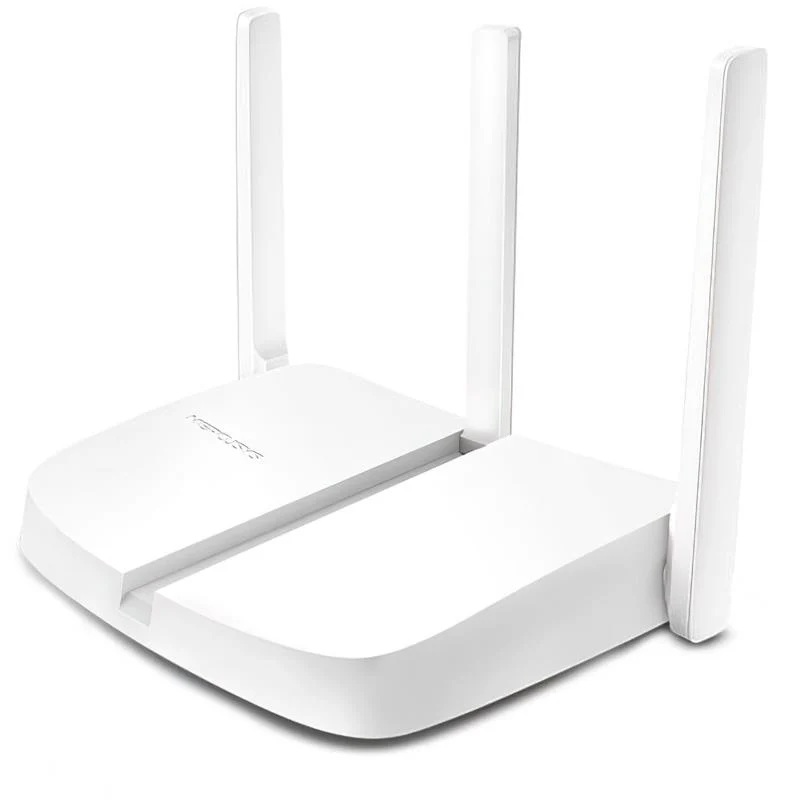

300mbps wireless n router
mw305r
power adapter
quick installation guide
ethernet cable
transmission power
<20dbm
wireless functions
wds bridge
wan type
dynamic ip/static ip/pppoe/l2tp/pptp
management
parental control
access control
local management
remote management
dhcp
server
port forwarding
virtual server, upnp, dmz
dynamic dns
dyndns?no-ip
firewall security
ip and mac address binding
protocols
ipv4
